* References on Processing Capability of CO2 Laser Systems  *







Download

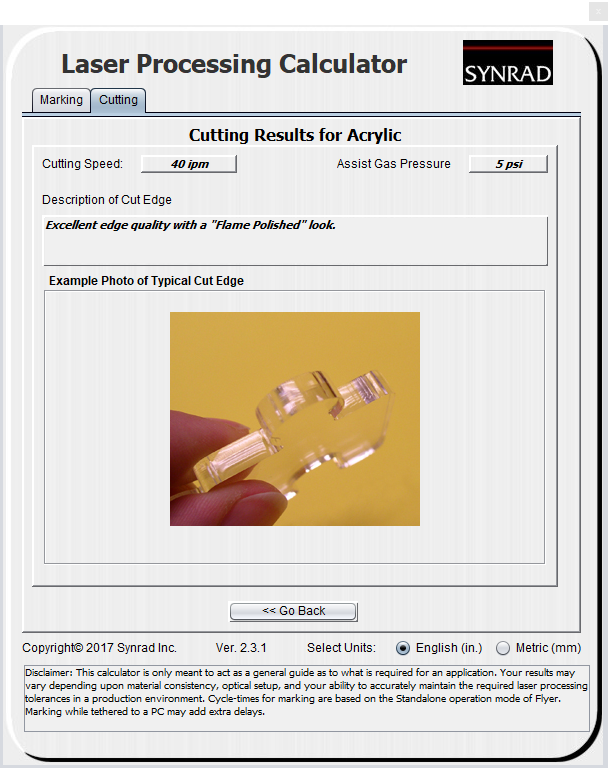

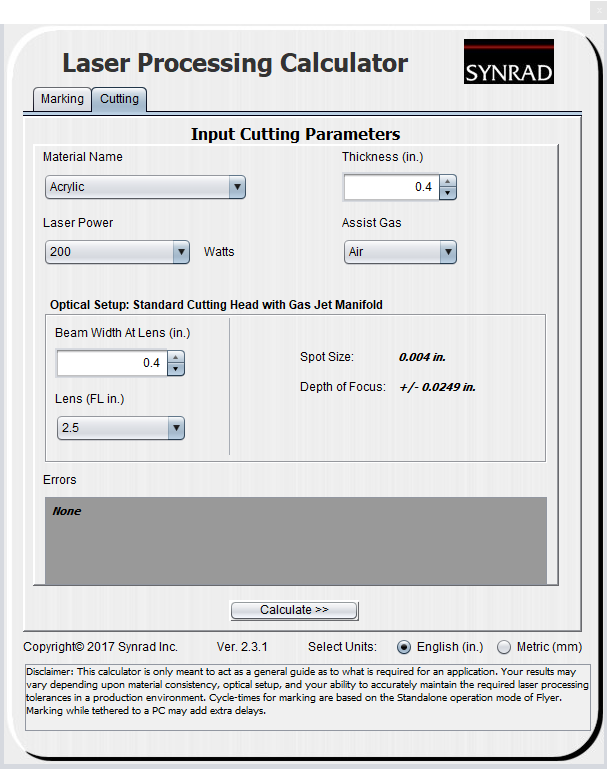

 this softwareplease link to: ProcessCalc2.3.1.zip

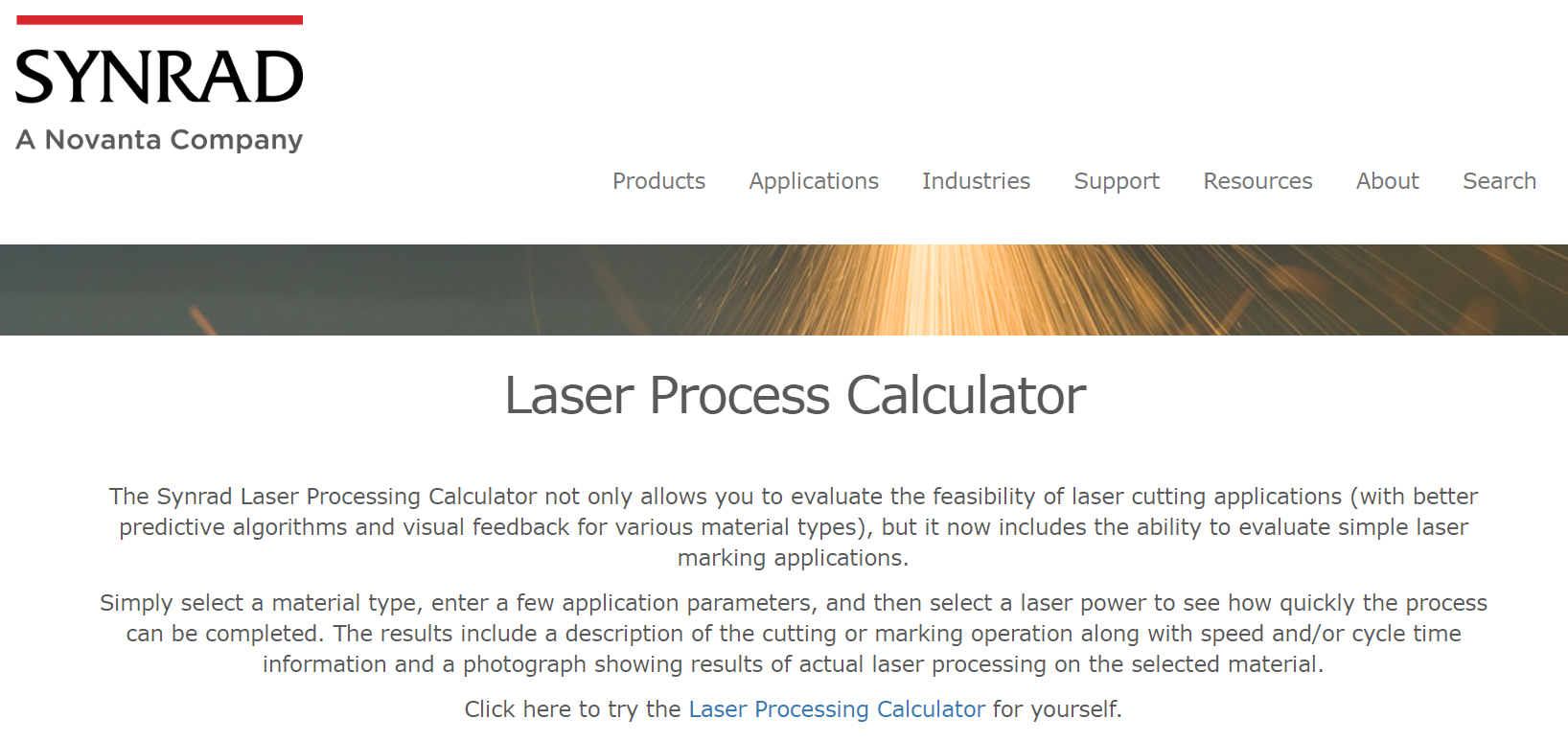

Resource from:  https://www.synrad.com/resources/tools/LaserProcessCalculator



Resource from:
http://www.rofin-uk.com/applications/view/000004


In this example, a Rofin-Sinar UK SCx20 has been used to scribe a ceramic plate to a depth of 360 micrometres, with a line width of 70 micrometres, at a speed of 7.8 m/min. The SCx laser was pulsed at a frequency of 1 kHz producing a peak power of 100 mJ and a 2.5" positive meniscus lens was used to focus the beam down to the required size. Air at a pressure of 2.5 bar was used as an assist gas.

Resource from:
http://www.rofin-uk.com/applications/view/000007
